ADF Linea 85 Insert Wood Fireplace
13.1kW
Nominal Power Output
Up to 200sqm
Heatable Area
0.8g/kg
Emissions

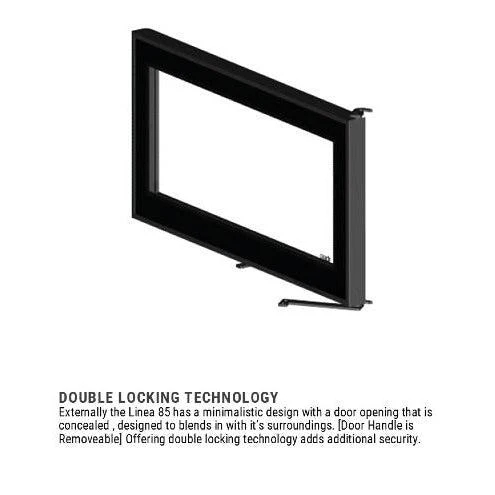

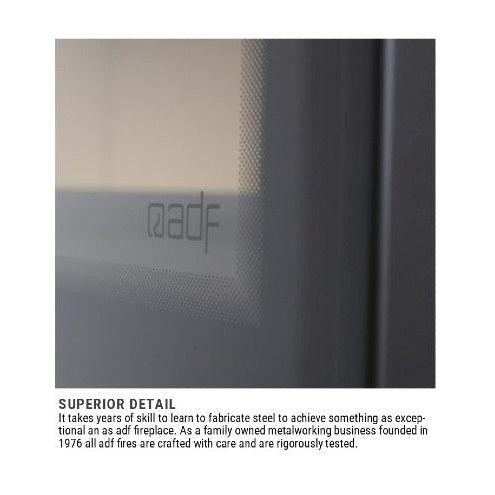

User experience is at the forefront of this fireplace. Every minute detail Ā is engineered to provide you with the ultimate in fireside luxury. Ā Externally the ADF Linea 85 has a minimalist design, with clean lines, Ā and crisp edges, that will fit perfectly with any design style. It takes years of skill to learn how to fabricate steel to achieve something as Ā exceptional as an ADF fireplace. As a family-owned metalworking business founded in 1976, all ADF fires are crafted with care and are rigorously tested to make them a pleasure to own and operate, the Linea 85 has Ā also been tested to adhere to the strict Australia Standards (AS2918 / Ā AS4012/4013).

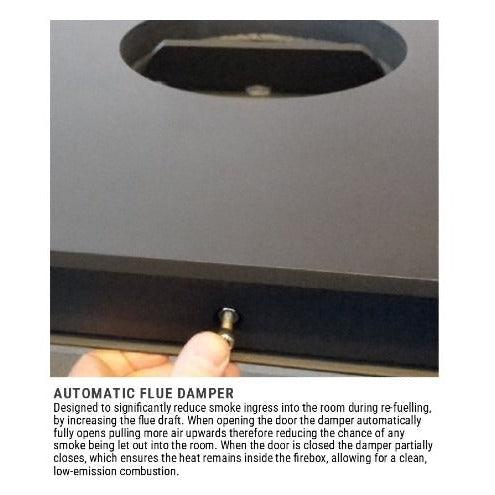

The Ā fire is not only eye-catching, it operates beautifully. Internally an Ā automatic flue damper is designed to significantly reduce smoke ingress Ā into the room during refueling, by increasing the flue draft. When Ā opening the door the damper automatically fully opens pulling more air Ā upwards therefore reducing the chance of any smoke being let out into Ā the room. When the door is closed the damper partially closes, which Ā ensures the heat remains inside the firebox. This keeps your house at Ā optimal temperatures and your wood consumption to a minimum.Ā

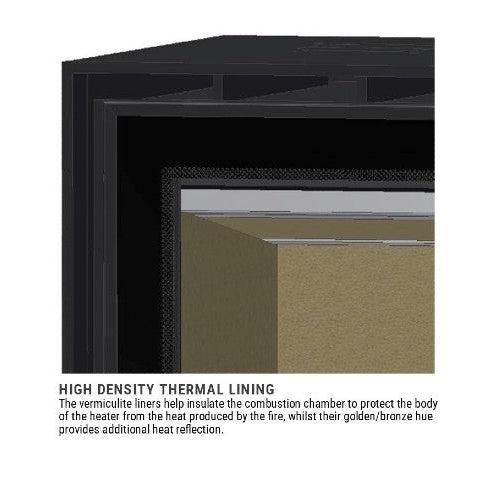

A high density thermal lining manufactured from vermiculite helps Ā insulate the combustion chamber to protect the body from the heat Ā produced by the fire, whilst their golden/bronze hue provides additional heat reflection.

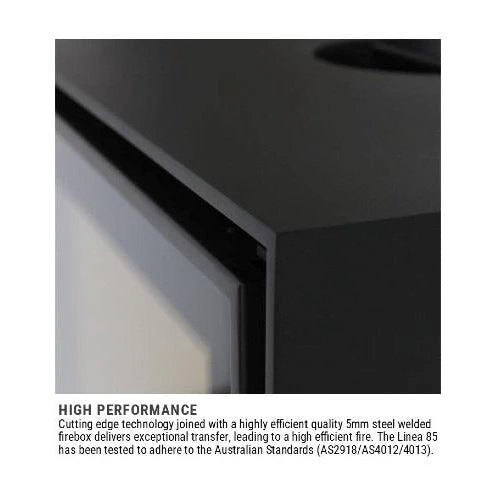

The firebox is constructed using high-strength 5mm quality steel and feature a single and easy-to-use air control, and air flow technology. By Ā controlling the airflow within the firebox, the glass is kept clear from soot, thus ensuring an uninterrupted view of the flames. The clean burn system introduces pre-heated combustion air to increase the heat Ā output, and air flow technology also ensures that any solid particles Ā and volatile gases produced by the fire are re-ignited and burnt off Ā before they can re-enter the atmosphere.
Providing an impressive average heat output of 13.1kW, the ADF Linea 85 is ideal for heating areas from 150-200mĀ².
Specifications
Weight - 150kg
Heat Output (Nominal) - 13.1kW
Approx. heat area - 150-200 m2
Efficiency - 72%
Emissions - 0.8g/Kg
Flue Options
8" Zero Clearance Flue Kit
Accessories
Zero Clearance Box

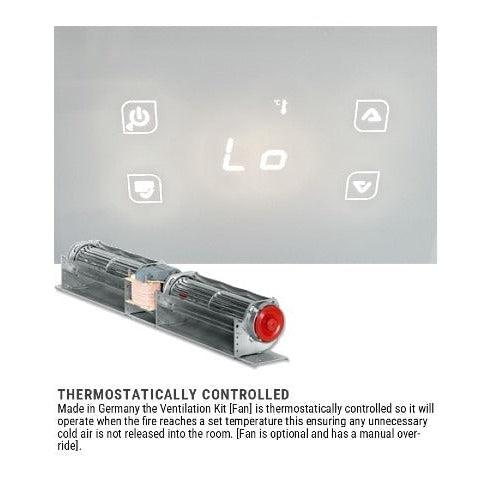

Fan With Black Touch Controller
Fan With White Touch Controller
4-Sided Profil Frame
4-Sided 60mm Return Flat Edge Frame
Downloads
PRODUCT BROCHURE (PDF)
INSTALLATION & OPERATION MANUAL (PDF)
ZERO CLEARANCE BOX MANUAL (PDF)
Installation
Need someone to install your fireplace? Find out how we can help.
Flueing and Accessories
- Flueing or accessories are not included in the price
- Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
